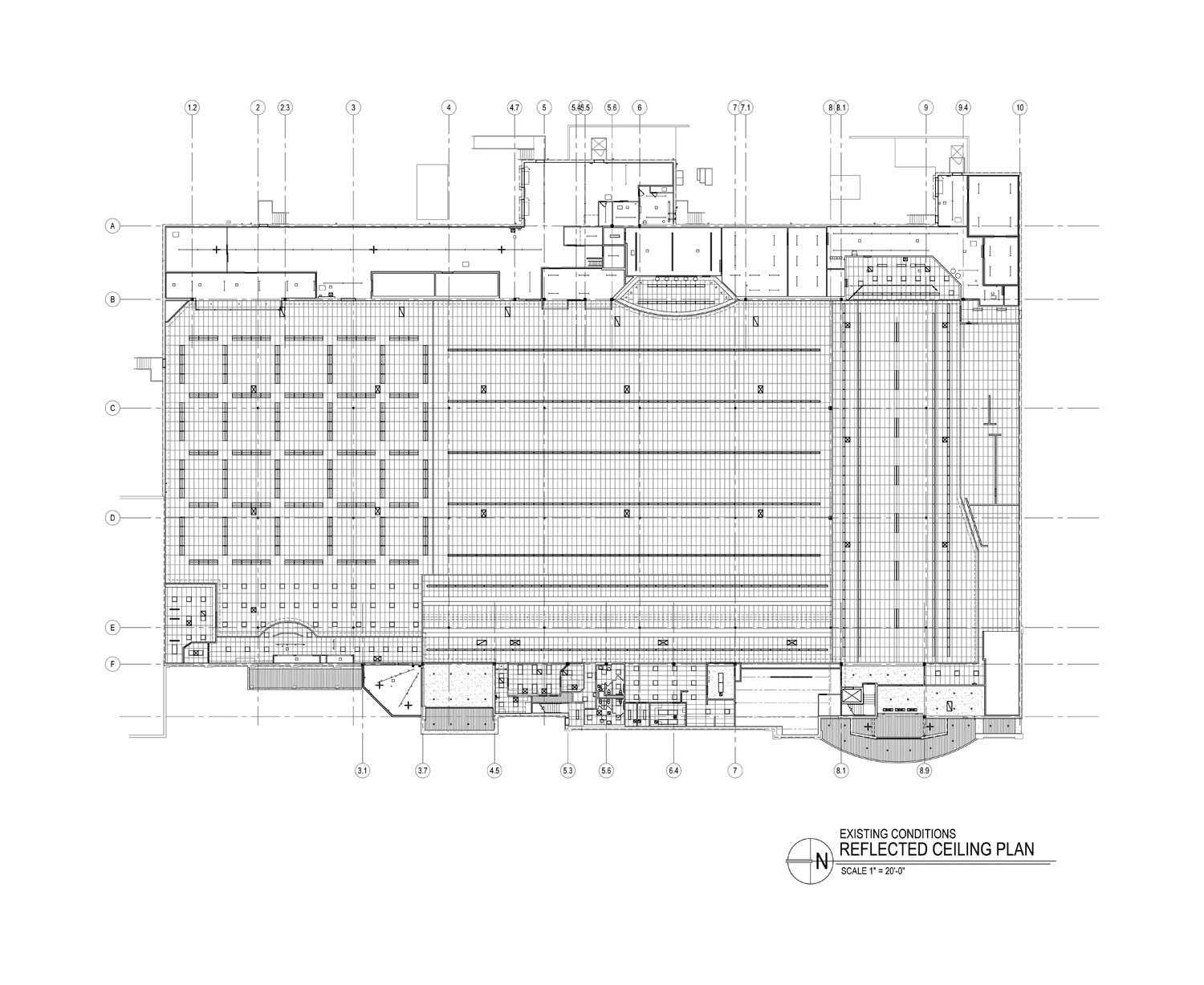

Reflected Ceiling Plans

Detailed reflected ceiling plans include ceiling types & heights above finish floor, light fixtures with detailed lamp information, exit & emergency lighting, & structural elements & heights above the ceiling or in an open-to-deck scenario.

All drawings will be completed in AutoCAD 2015 (or earlier) format & saved as PDF drawings for simple viewing & distribution.
